After 3 years of fantastic reviews, awards and accolades we distilled the essence of the old eOne-Sixty to create an innovative new version
After 3 years of fantastic reviews, awards and accolades we distilled the essence of the old eOne-Sixty to create an innovative new version
Merida

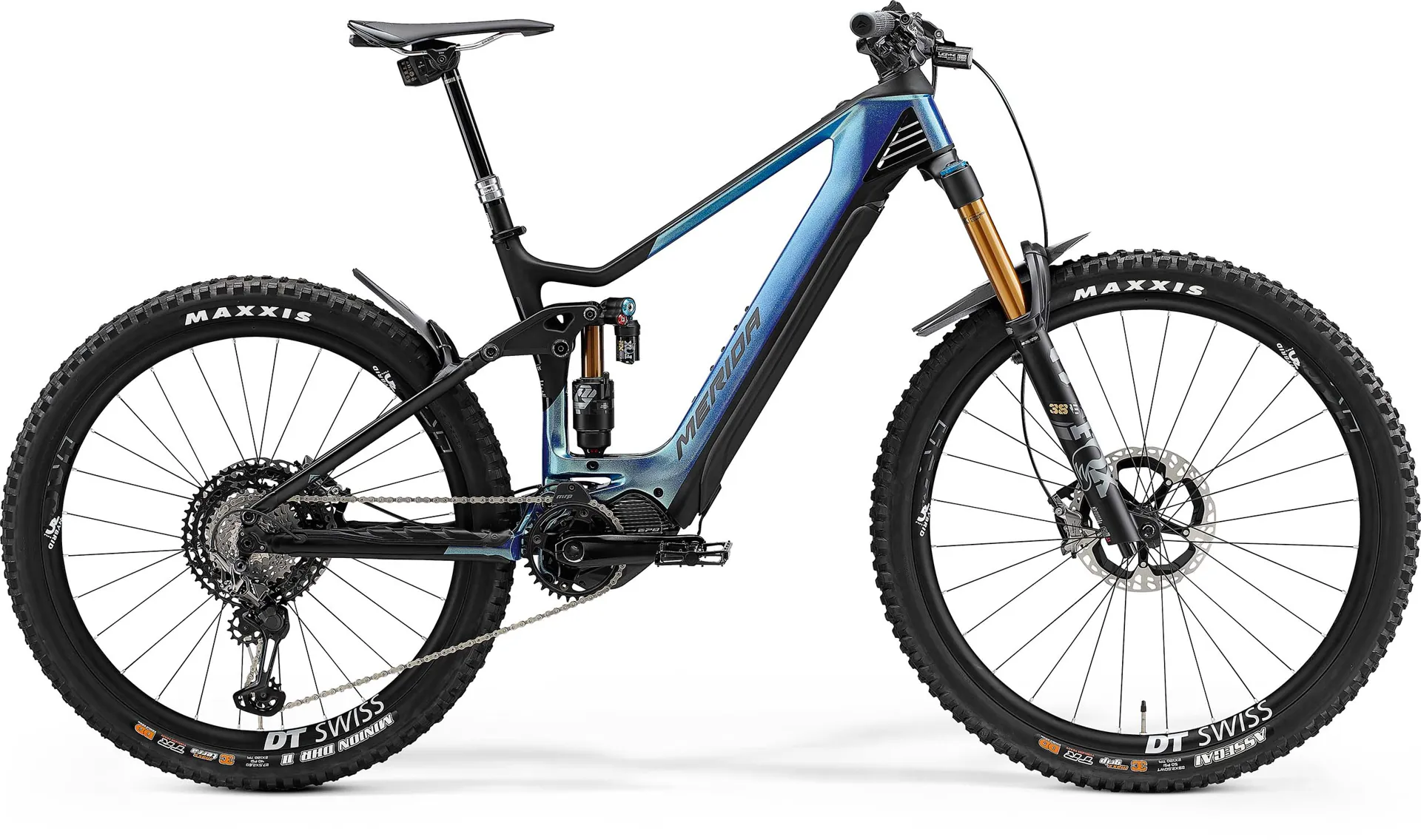

2021 Merida eOne-Sixty 10k Electric Mountain Bike in Blue

£9,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2021 Merida eOne-Sixty 10k Electric Mountain Bike in Blue

Season:2021

Brand:Merida

Code:P-M800

All the riding characteristics of the original were transferred to a carbon frame with easy access internal battery that can be charged on or off the bike

The new eone sixty is perfect for e-enduro riding with its perfectly tuned MTB geometry and mullet wheel standard it feels incredibly planted when descending the most demanding of trails.Our design ethos perfectly mirrors shimano, creating ebike products that mirror normal riding.The brand new Shimano ep8 motor delivers more power, 85nm but in a very smooth and natural manner. To keep you riding longer we use the new Shimano 630w battery.The range topping 10-k comes with Fox suspension and Shimano XTR transmission and brakes and a DT swiss wheelset

Technical Information
  • Frame:
    eONE-SIXTY CFA II
    Material: Carbon
    150mm suspension travel
    27.5x2.8" max. wheelsize
    148x12mm axle standard
    Intube
    Max. 630 Wh
  • Frame Size:
    M, L, XL
  • Shock:
    FOX Factory Float X2
    platform
  • Fork:
    FOX 38 Factory eMTB+
    Air
    160mm suspension travel
    Tapered
    51mm fork offset
    29x2.6" max wheelsize
  • Drive Unit:
    Shimano EP8
    85Nm
  • Battery:
    Shimano E8036 630Wh / E8035 504Wh XS
  • Battery Charger:
    Shimano EC-E8004
    4A charging current
  • Display:
    Shimano SC-EM800
  • Speed Sensor:
    Shimano EW-SS301
  • Wheelset:
    DT Swiss Spline HXC1250 Spline 30 boost
    110x15mm width front hub
    148x12mm width rear hub
    30mm inner width
    Centerlock
    Microspline
    Material: Carbon
    Tubeless ready (tubeless tape and valves included)
  • Front Tyre:
    Maxxis Assegai
    29x2.5"
    Fold
    TR DD 3C MaxxGrip
  • Rear Tyre:
    Maxxis Agressor
    27.5x2.5"
    Fold
    TR DD Dual
  • Chainwheel:
    Shimano CRE80-12-B
    34 teeth
    Shimano FCEM900
  • Crank Size:
    Shimano FCEM900
    165mm all sizes
    Hollow
  • Bottom Bracket:
    Included
  • Cassette:
    Shimano M9100
    10-51 teeth
    12 speed
  • Chain:
    CNM9100
  • Shifters:
    EC AXS Rockshox LH 1Button DIS / Shimano XTR M9100
  • Rear Derailleur:
    Shimano XTR Shadow+
  • Brakes:
    Shimano XTR
    4 piston
  • Rotors:
    Shimano RT-MT900 / Shimano RT-EM910
    203 mm
  • Headset:
    Merida-8152
  • Stem:
    Merida Expert eTRII
    Material: Aluminium
    35mm diameter
    0° stem angle
    GoPro & Supernova mount
    40mm all sizes
  • Stem Size:
    40mm all sizes
  • Handlebar:
    Merida Expert eTR
    780mm width
    20mm rise
  • Grip:
    Merida Expert EC
  • Seat Post:
    SP Reverb AXS
    30.9mm diameter
    0mm setback
    XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
  • Seat Clamp:
    Merida Expert Clamp
  • Lights:
    Lights Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / Lezyne LED Femto USB Rear STVZO
  • Bottle Cage:
    Merida Team
  • Mudguard:
    C093-02F + C093-02R
  • Pedal:
    VP VPE-527
  • Weight:
    22.89 kg
