The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has swept the competition aside with numerous test wins around the world.
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has swept the competition aside with numerous test wins around the world.
Merida

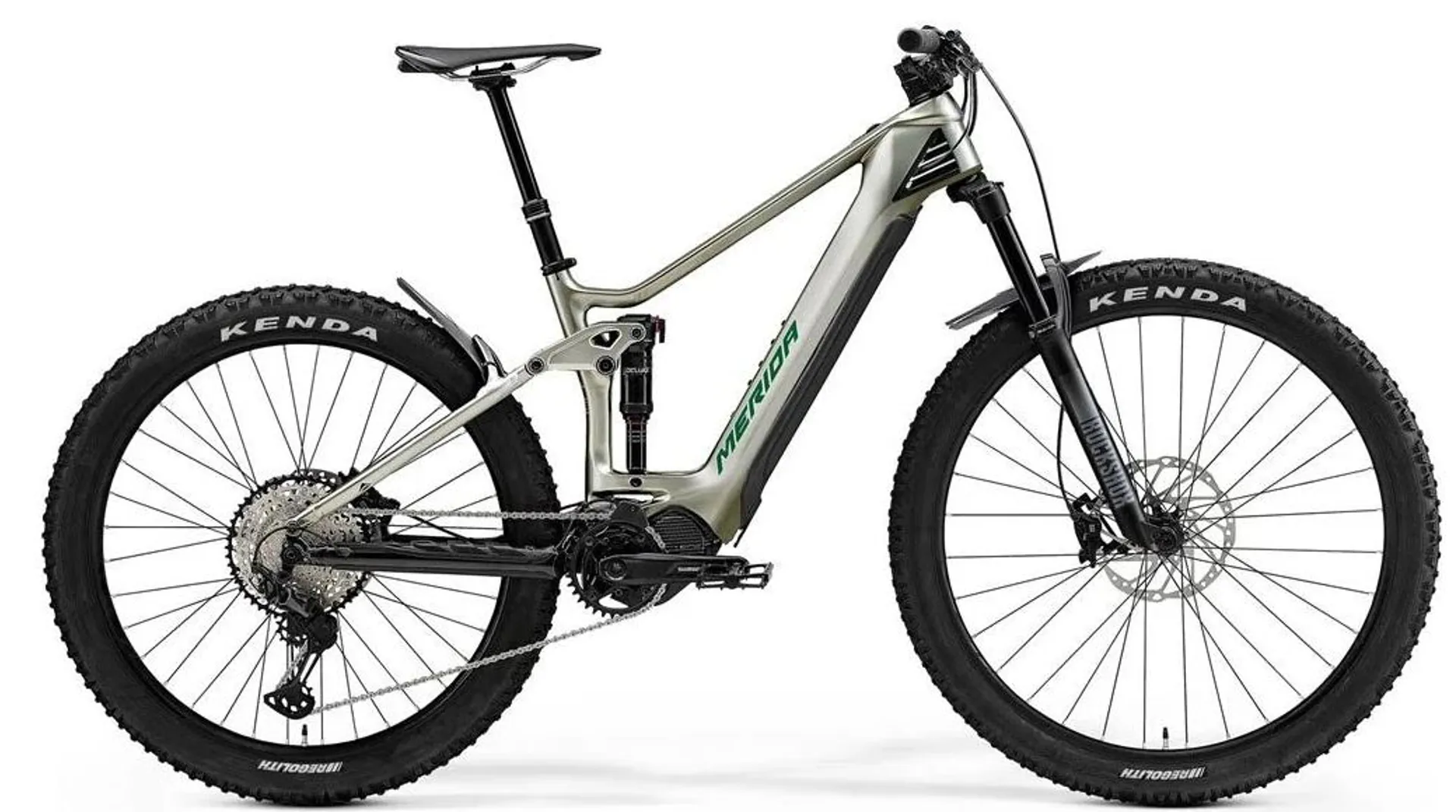

2021 Merida eOne-Sixty 5000 Electric Mountain Bike in Grey

£4,750.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2021 Merida eOne-Sixty 5000 Electric Mountain Bike in Grey

Season:2021

Brand:Merida

Code:P-M969

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has swept the competition aside with numerous test wins around the world.

The Merida eOne-Sixty is built around the compact Shimano Steps motor, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and regular bike geometry.

Merida have combined a 29er front wheel with a 2.5 tyre and a 650B rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.

The carbon frame incorporates an internal block which prevents the bars turning and damaging the frame in the event of a tumble. The signature Thermo Gate vents at the top of the down tube allow heat to dissipate and maintain the temperature of the battery. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.

Technical Information
  • Frame
    CFA II Carbon front with 6016 aluminium rear. Integrated battery. Satellite on/off switch, on-bike charging port, thermo gate. Internal cable routing. Tapered head tube, Internal Block. 148 x 12mm axle standard. Max Tyre clearance 27.5 x 2.8.
  • Rear Shock
    RockShox Deluxe Select
  • Fork
    RockShox 35 Silver R; Air; 160mm travel; Tapered; 51mm fork offset. Max Tyre clearance 29 x 2.8
  • Headset
    Merida-1901
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 40 mm all sizes
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano M4100
  • Brake Calipers
    Front: Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor Rear: Shimano M4100; 4 piston hydraulic disc brake with Shimano RTEM300; 203 mm rotor
  • Tyres
    Front: Kenda Regolith; 29 x 2.4; wire bead Rear: Kenda Regolith; 27.5 x 2.6; wire bead
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; Material: aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
  • Speeds
    10
  • Rear Derailleur
    Shimano Deore RDM5120 10
  • Shift Levers
    Shimano Deore M4100
  • Chain
    Shimano CN-HG54
  • Cassette
    Shimano M4100; 11-46 teeth; 10 speed
  • Chainset
    Shimano CRE70B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-537
  • Saddle
    Merida Comp CC
  • Seat Post
    Merida Comp TR; 30.9mm diameter; in-line; XS 100mm drop - S/M 125mm drop - L/XL 150mm drop with Shimano SL -MT500-IL lever
  • Motor
    Shimano E8035; 504Wh battery, Shimano EP8; 85Nm motor
  • Battery Capacity
    504 Wh
  • eBike Display
    Shimano SC-E5003
