Merida

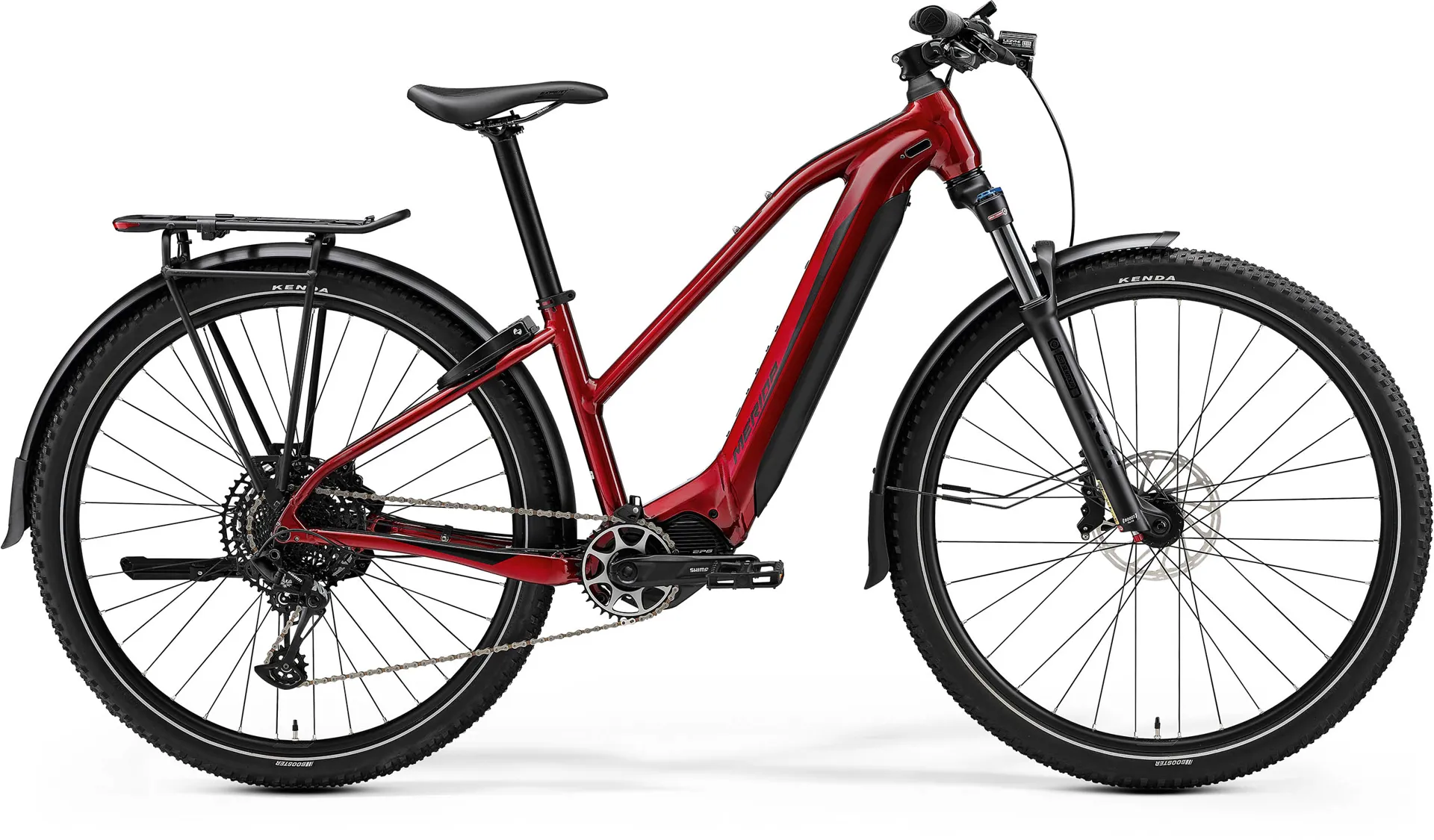

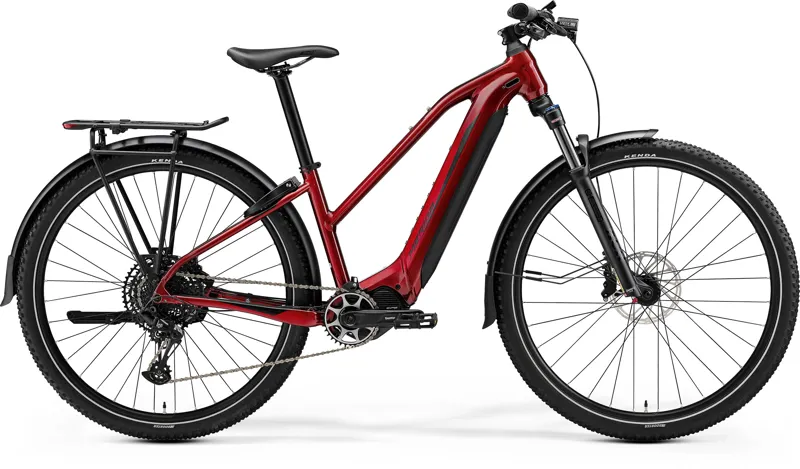

Merida eBig Tour 675 in Red/Black

£3,950.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Merida eBig Tour 675 in Red/Black

Season:2024

Brand:Merida

Code:P-P870

Highlights:
  • Shimano Steps EP6 85Nm motor
  • 750Wh internal battery
  • SRAM NX Eagle 12 speed
  • SRAM hydraulic disc brakes
  • Equipped with mudguards, rack and lights
eMTB with a bigger tank - 85Nm Shimano Steps EP6 motor and 750Wh battery, Equipped with mudguards and rack for all year practicality. 12 speed transmission, Suntour XCR34 fork and hydraulic disc brakes.

The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality. The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride. Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing. The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.

Technical Information
FRAME
  • Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
MOTOR
  • Shimano Steps EP6; 85Nm
BATTERY
  • Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY
  • 750Wh
EBIKE DISPLAY
  • Shimano SC-EN600
CHARGER
  • Trend Power Simplo EU Charger; 4A
MODE SWITCH
  • Shimano SW-EN600-L
FORK
  • Suntour XCR34 LOR DS; Air; Boost; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
GEARS
  • 12
SHIFTERS
  • SRAM NX Eagle 12 speed
REAR DERAILLEUR
  • SRAM NX Eagle
BOTTOM BRACKET
  • Part of Shimano Steps motor
CHAIN
  • SRAM SX Eagle
CHAINSET
  • SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
CASSETTE
  • SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
BRAKE LEVER
  • SRAM DB8
FRONT BRAKE
  • SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
REAR BRAKE
  • SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
GRIP
  • Merida Expert TK
HANDLEBAR
  • Merida Expert CC; aluminium; 720mm wide; 10mm rise
STEM
  • Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET
  • Merida-8155 (for steerer 1-1/8"~1.5")
PEDAL
  • VP Components - VPE-537
SADDLE
  • Merida Expert TK; V-mount
SEAT POST
  • Merida Expert CC; aluminium; 34.9mm diameter; in-line
WHEEL SIZE
  • 29"
RIMS
  • Merida Comp CC II; 25mm inner rim width; aluminium
SPOKES
  • Black stainless
FRONT HUB
  • Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
REAR HUB
  • Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
  • Kenda Booster; 29" x 2.2"; wire bead
REAR TYRE
  • Kenda Booster; 29" x 2.2"; wire bead
COLOUR
  • Red/Black
SEASON
  • 2024
FRONT LIGHT
  • Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT
  • Spanninga Commuter Glow XE integrated rear light
OTHER
  • Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
