The perfect partner for urban riding, offering comfort and practicality.
The perfect partner for urban riding, offering comfort and practicality.
Merida

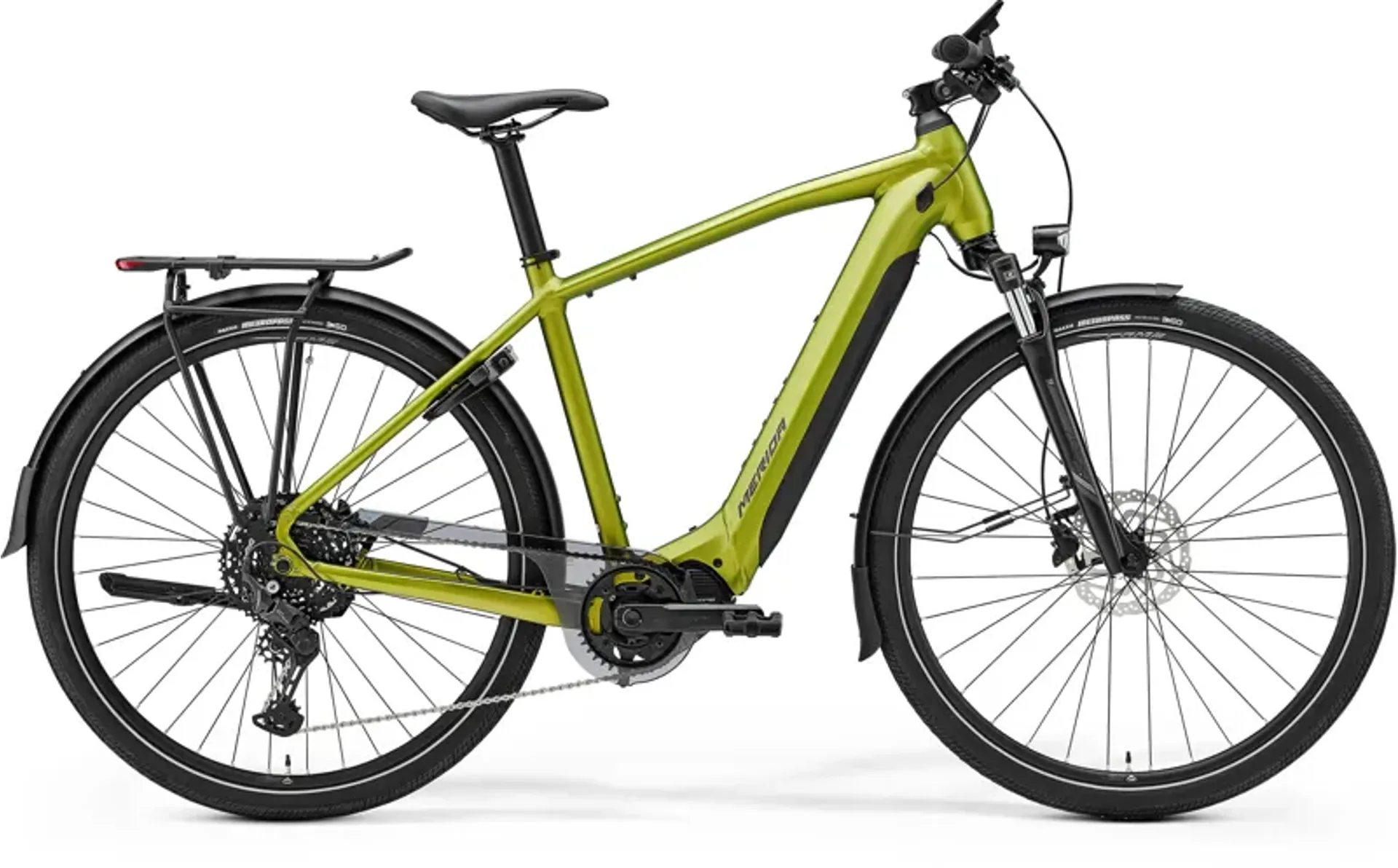

Merida eSpresso 575 EQ Electric Bike in Green/Black

£3,400.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Merida eSpresso 575 EQ Electric Bike in Green/Black

Season:2024

Brand:Merida

Code:P-P885

The perfect partner for urban riding, offering comfort and practicality.

Standard-fit mudguards, lights, lock, rack and kickstand mean you're ready to go from the moment you leave the shop. The range includes options a low step through city version for added ease. Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths.

Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light. Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel.

A tapered head tube delivers confidence inspiring handling. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage. Strong but controllable hydraulic disc brakes help you stop with ease.
Technical Information
  • Frame
    Lite IV - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards
  • Rear Shock
  • Fork
    Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C
  • Headset
    Merida-8156
  • Stem
    Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm (XS,S,M), 110mm (L,XL)
  • Handlebar
    Merida Expert; aluminium; 660mm wide; 15mm rise
  • Grip
    Merida Expert TK
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano MT200
  • Brake Calipers
    Front: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor Rear: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
  • Tyres
    Front: Continental Ride Cruiser; 622-50; wire bead with reflective strip Rear: Continental Ride Cruiser; 622-50; wire bead with reflective strip
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Comp TK; 20mm inner rim width; aluminium Spokes: Black stainless Front Hub: Shimano QC300; 100 x 9mm; 32 spokes; Centerlock Rear Hub: Shimano TC500-HM; 142 x 12mm; 36 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
  • Speeds
    10
  • Front Derailleur
  • Rear Derailleur
    Shimano CUES U6000; GS
  • Shift Levers
    Shimano CUES U6000
  • Chain
    Shimano LG500
  • Cassette
    Shimano LG300; 11-48 teeth; 10 speed
  • Chainset
    Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components - VPE-891
  • Saddle
    Merida Expert TK II; V-mount
  • Seat Post
    Merida Expert CC; aluminium; 34.9mm diameter; in-line
  • Motor
    Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm
  • Battery Capacity
    750Wh
  • eBike Display
    Shimano SC-EN610
