The espresso cc is the rugged sibling of the regular espresso, with wider and grippier high-volume tyres on 650b wheels.
The espresso cc is the rugged sibling of the regular espresso, with wider and grippier high-volume tyres on 650b wheels.
Merida

Merida eSpresso CC 400 EQ MY22 Electric Bike in Green

£1,799.00 £3,350.00 46% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

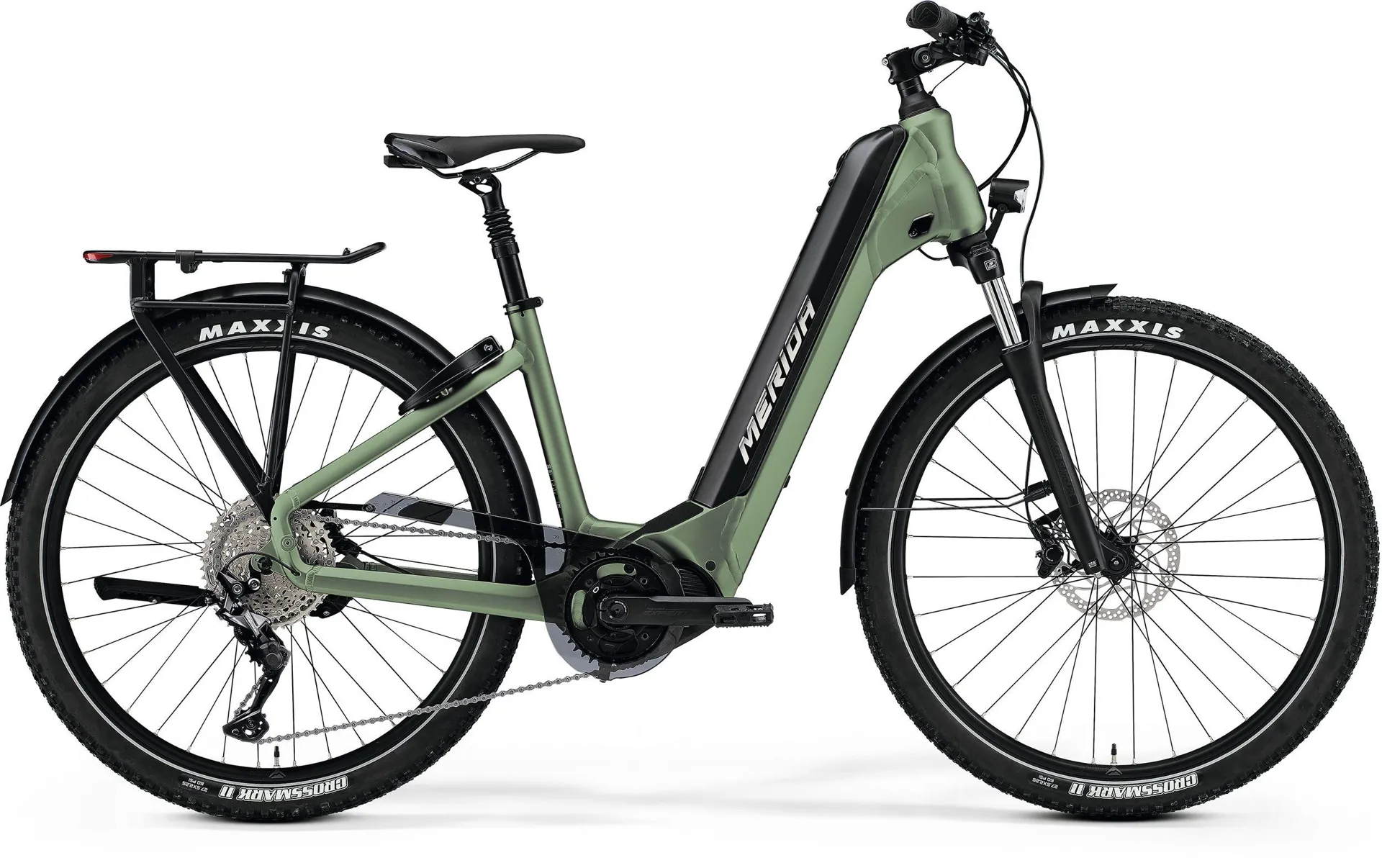

Merida eSpresso CC 400 EQ MY22 Electric Bike in Green

Season:2023

Brand:Merida

Code:P-N886

The espresso cc is the rugged sibling of the regular espresso, with wider and grippier high-volume tyres on 650b wheels.

Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. All espresso cc models are equipped with a refined, powerful Shimano steps pedal-assist motor.

Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Technical Information
  • Frame
    Hydroformed 6066 triple butted aluminium. Tapered head tube and bolt through axles for stiffness and confidence inspiring riding. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5 x 2.25
  • Fork
    Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size: 27.5 x 2.4
  • Headset
    Merida-8252
  • Stem
    Merida Expert CT; aluminium; 31.8mm diameter; adjustable. Stem length: 90mm (all sizes)
  • Handlebar
    Merida Expert; aluminium; 660mm wide; 15mm rise
  • Grip
    Merida Expert TK
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano MT-200
  • Brake Calipers
    Front: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor Rear: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor
  • Tyres
    Front: Maxxis Crossmark II; 27.5 x 2.25; wire bead; reflective line Rear: Maxxis Crossmark II; 27.5 x 2.25; wire bead; reflective line
  • Wheel Size
    27.5
  • Wheels
    Rims: Merida Comp TK; 20mm inner rim width; aluminium Spokes: Black stainless Front Hub: Shimano TX505; 100x9mm; 32 spokes; Center lock Rear Hub: Shimano TX505; 135x9mm; 36 spokes; Center lock
  • Speeds
    10
  • Rear Derailleur
    Shimano Deore RDM5120; SGS
  • Shift Levers
    Shimano Deore M4100
  • Chain
    KMC e10S EPT
  • Cassette
    Shimano M4100; 11-46 teeth; 10 speed
  • Chainset
    Shimano CRE61; 38 tooth chainring with Shimano FC-E8000; 165 mm crank and chainguard
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-891
  • Saddle
    Merida Expert TK; V-mount
  • Seat Post
    JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps E6100; 60Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E5000
