The Merida Big Trail has been a hit with the mountain bike press and trail riders alike.
The Merida Big Trail has been a hit with the mountain bike press and trail riders alike.
Merida

Merida Big Trail 400 Mountain Bike in Grey/Black

£1,100.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

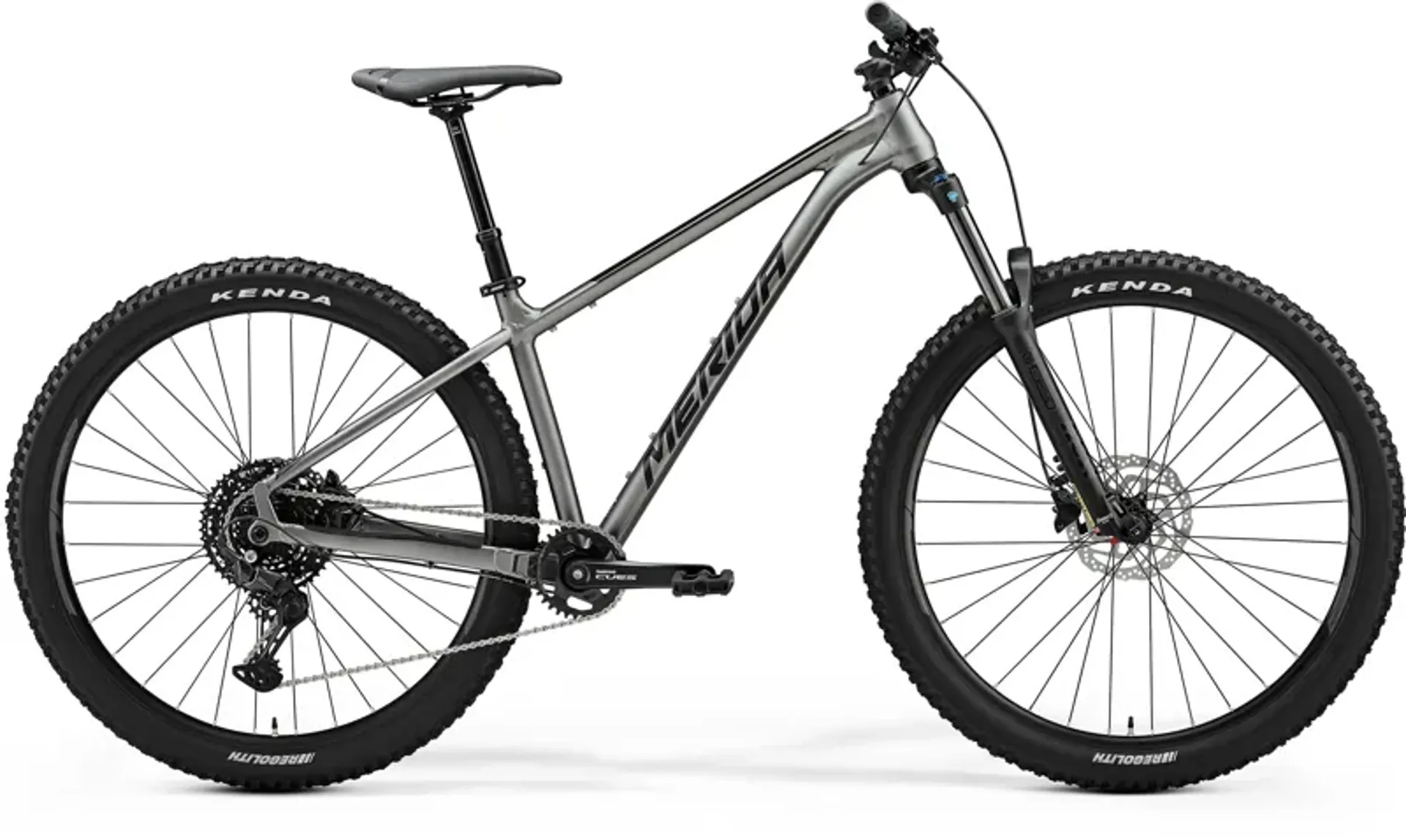

Merida Big Trail 400 Mountain Bike in Grey/Black

Season:2024

Brand:Merida

Code:P-P185

The Merida Big Trail has been a hit with the mountain bike press and trail riders alike.

Bikeboard.cc confirmed that Merida 'nailed it', while MBR, IMB and many more confirmed that the Big Trail is firmly at the top of the trail hardtail game. Conversations between UK bike shops and Merida's German R & D team resulted in the development of a fun-packed and hugely capable bike.

Trail bike geometry combined with a long travel 140mm fork and grippy 2.4 wide 29er trail tyres make this the perfect companion for exciting trail sessions and demanding all-day rides over rough terrain. It's perfectly suited to UK riding. The modern trail bike geometry has a slack enduro inspired 65.5° head angle, steep seat angle and a long reach.

A short seat tube delivers a low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post. The geometry means most sizes work for most body sizes so riding style can be factored in. If you want to go crazy fast, take the longer size, for agility, take a shorter size.

The Big Trail has hidden talents, in addition to two sets of bottle bosses, there's a trail mount under the top tube allowing you to carry tools and extra gear on the bike. It's also possible to fit mudguards and a rack if you want to trek further afield.
Technical Information
  • Frame
    TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
  • Rear Shock
  • Fork
    Suntour XCR34 2CR DS; Air; 140mm travel; Tapered; lockout; 51mm fork offset
  • Headset
    Merida M4455
  • Stem
    Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise. Stem length: 50mm all sizes
  • Handlebar
    Merida Expert CC; aluminium; 740mm wide; 10mm rise
  • Grip
    Merida Comp EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano MT200
  • Brake Calipers
    Front: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor Rear: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
  • Tyres
    Front: Kenda Regolith; 29 x 2.4; wire bead Rear: Kenda Regolith; 29 x 2.4; wire bead
  • Wheel Size
    29
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano TC500-B; 110x15mm; 32 spokes; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
  • Speeds
    10
  • Front Derailleur
  • Rear Derailleur
    Shimano CUES U6000; GS
  • Shift Levers
    Shimano SL-MT500-IL dropper lever and Shimano CUES U6000
  • Chain
    Shimano LG500
  • Cassette
    Shimano LG300; 11-48 teeth; 10 speed
  • Chainset
    Shimano CUES U4000; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL)
  • Bottom Bracket
    Shimano BB-UN101; 73mm
  • Pedals
    VP VPE-891
  • Saddle
    Merida Comp SL with V-mount
  • Seat Post
    Merida Comp TR; 30.9mm diameter; 0mm lay back; S: 125mm seat post travel - M/L: 150mm seat post travel - XL/XXL 175mm seat post travel
Sizing Information
