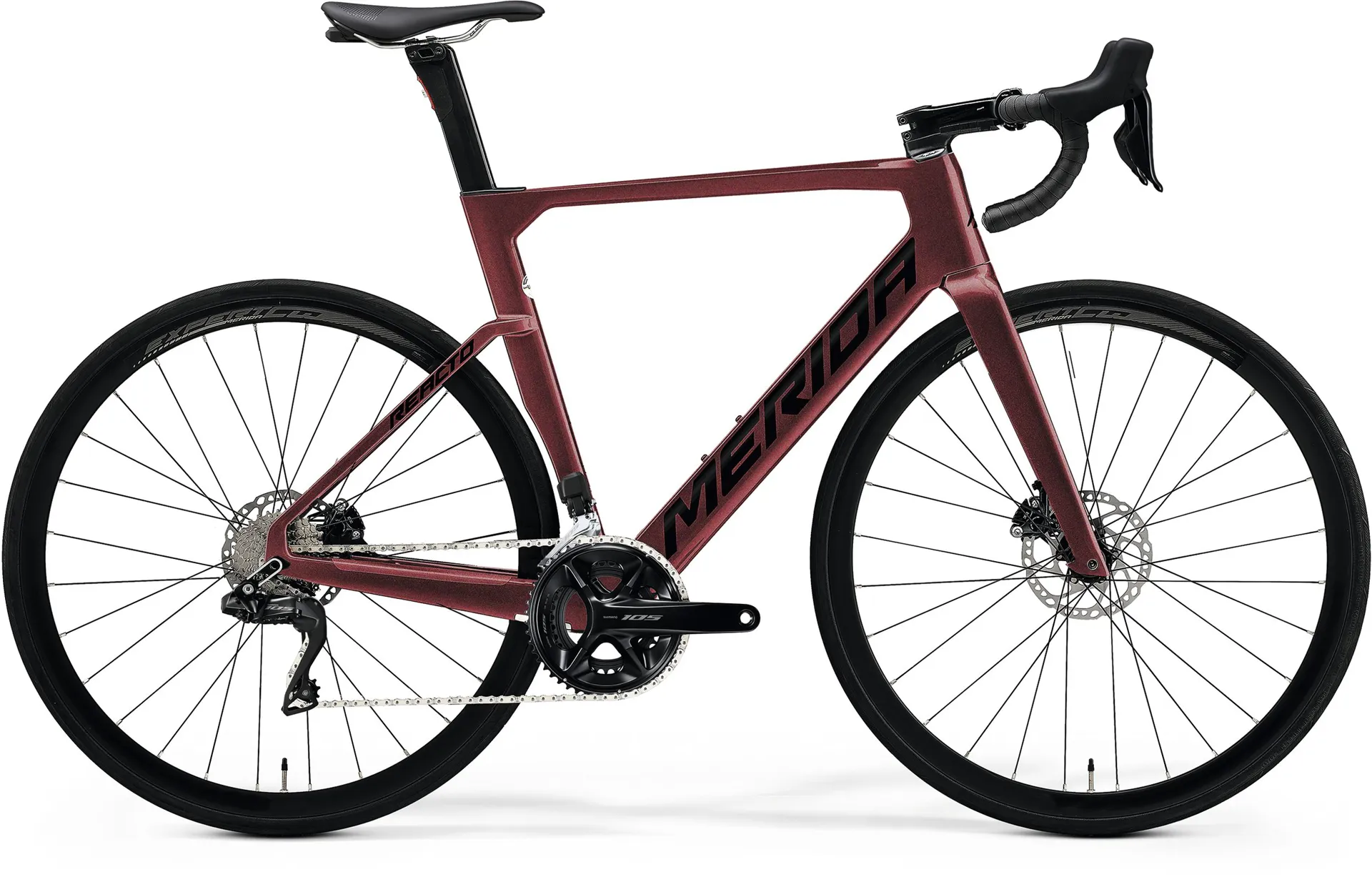

Brand | Merida |
---|
Frame | CF3 IV – carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, BB86 BB standard, 142 x 12mm axle standard. Maximum tyre clearance 700 x 30c |
---|
Fork | Reacto CF3 IV Disc; full carbon, tapered steerer. Max. tyre size: 700 x 30c. Disc cooler technology |
---|
Head Set | FSA ACR |
---|
Stem | FSA SMR ACR; aluminium; -6 degree rise. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL) |
---|
Handle Bars | Merida Expert CW; aluminium; Width: 380mm (XXS), 400mm (XS), 420mm (S-M-L), 440mm (XL) |
---|
Tape Grips | Merida Road Expert |
---|
Brakes | Shimano 105; hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
---|
Brake Levers | Shimano 105 Di2 |
---|
Rear Derailleur | Shimano 105 Di2 |
---|
Shift Levers | Shimano 105 Di2 |
---|
Cassette | Shimano CN-M6100-12s |
---|
Chainset | Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S/M), 175mm (L,XL) |
---|
Pedals | No -Click here to see our pedals » |
---|
Wheels | Merida Expert CW; 19mm inner rim width; 30mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
---|
Front Tyre | Continental Grand Sport Race; 700 x 25c; Kevlar bead, folding; |
---|
Rear Tyre | Continental Grand Sport Race; 700 x 25c; Kevlar bead, folding; |
---|
Saddle | Merida Expert SL; V-mount; including Merida minitool |
---|
Seat Post | Merida Team CW; Aero shape; 15mm lay back; Carbon with intergrated rear light and battery |
---|
Material | Carbon |
---|
